Mine Waste Water Plant Clarification Upgrade

Enhancing Mine Water Clarification with Advanced Control Systems

The Challenge

The mine had an outdated water clarification system lacking necessary control features, causing higher operational costs and frequent maintenance issues.

The Solution

1. Addition of a New Control Cabinet: A central hub equipped with the latest technology to manage all clarification processes.
2. Integration of Seven Variable Speed Drives (VSDs): Precise motor speed control for optimized energy usage and process efficiency.

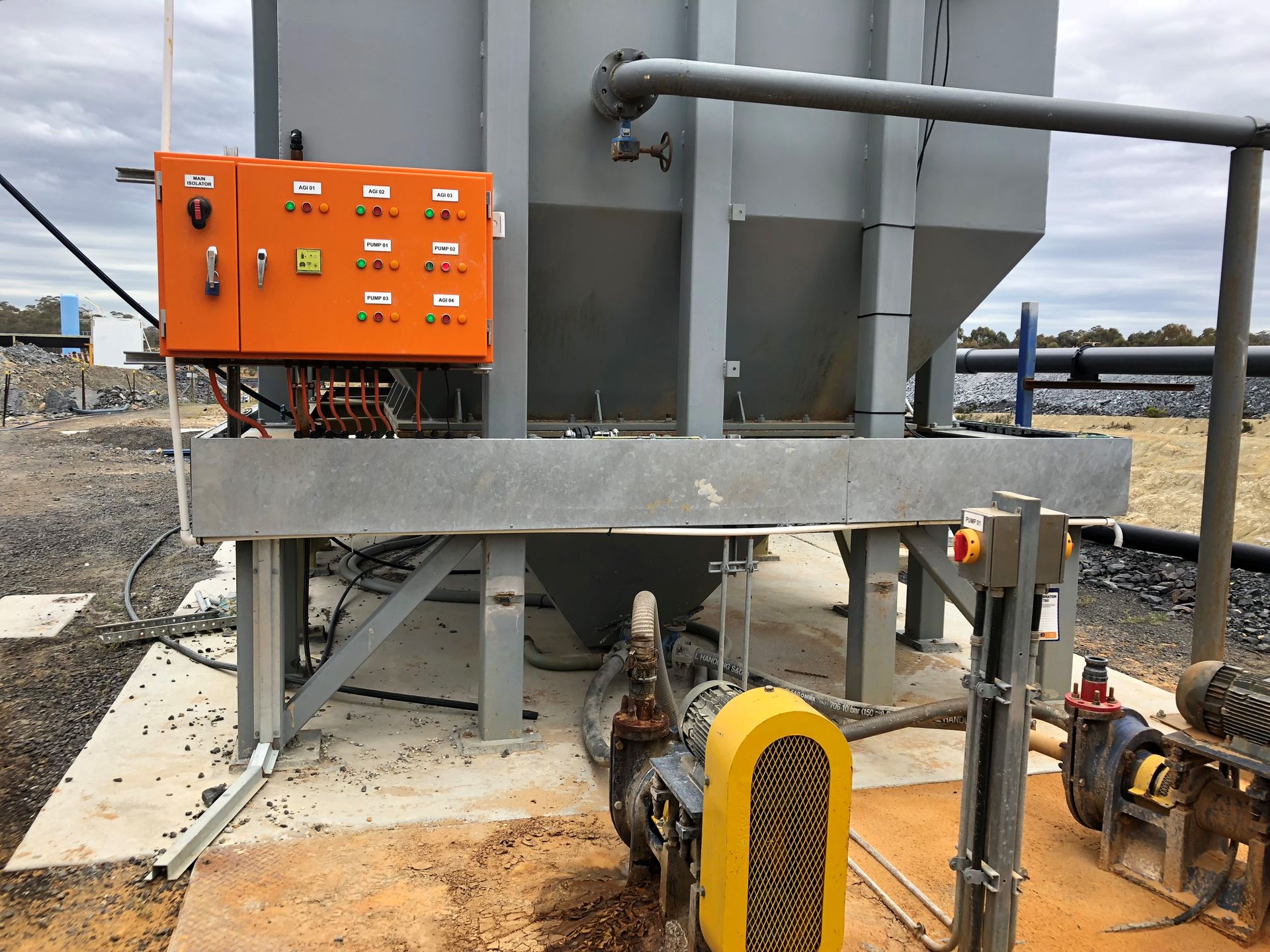

3. Multiple Remote I/O Drops: Extended system reach with comprehensive data capture across the entire plant.
4. Utilization of Rockwell Compact Logix Platform and Rockwell HMIs: A robust, scalable, and user-friendly control platform.
5. Remote Access via Secure VPN and 4G: Real-time monitoring and control from anywhere, reducing the need for on-site presence.
6. Mine Specification Equipment Protection Relays: As per the required standard for mining operations.

The Results

• Enhanced Efficiency and Performance: Optimized clarification processes with reduced energy consumption.
• Improved Monitoring and Control: Comprehensive capabilities across all system aspects.
• Increased Reliability and Reduced Downtime: Modern technology reduces maintenance frequency and costs.
• Future-Proof Solution: The scalable Rockwell platform adapts to future needs and expansion.

Conclusion

Arrow Automation is committed to delivering innovative solutions for the mining industry. Our client now benefits from a robust and future-proof water clarification system that enhances efficiency, reduces costs, and meets the stringent requirements of mining operations.
